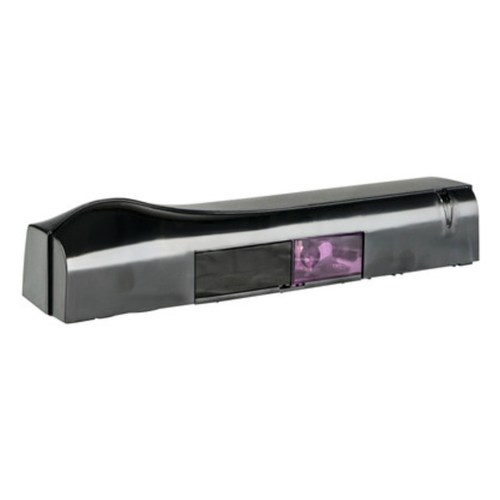

    Sensor, 10FALCON, Motion, BEA

    Manufacturer: - No Manufacturer -
    SKU: 10FALCON
    Downloads / Attachments

    The BEA Falcon Gate and Door Motion Detector 10FALCON is a part of BEA’s Falcon Family of sensors and is the premier microwave activation solution for indoor and outdoor applications. The 10FALCON allows for uni- or bi-directional sensing, as well as the capability of opening a door when traffic is moving away from the sensor. The BEA Falcon is ideal for automatic industrial doors, vehicle gates/barriers, vehicle detection, loading docks, or any other industrial application where motion detection is required. Unlike some sensors, the 10FALCON is equipped with the ability to distinguish movement by a vehicle from that of a pedestrian in the detection area. Mounting height ranges between 11.5 and 23 feet.

    Features:

    • Part BEA’s Falcon Family of sensors

    • Premier microwave activation solution for indoor and outdoor applications

    • Uni- or bi-directional sensing

    • Mounting height of 11.5 ft. to 23 ft.

    • Differentiates between vehicular and pedestrian traffic

    SPECS:

    • Technology: Microwave Doppler Radar

    • Radiated Frequency: 24.150 GHz

    • Transmitter Radiated Frequency: < 20 dBm EIRP

    • Radiated Power Density: < 5 mW/cm2

    • Detection Mode: Motion

    • Detection Zone: 13 ft. x 16 ft. @ 16 ft.

    • Tilt Angles: 0° - 180°

    • Output: Relay (free of potential change-over contact)

    • Maximum Contact Voltage: 42 VAC/VDC

    • Maximum Contact Current: 1 A (resistive)

    • Maximum Switching Power: 30 W (DC); 60 VA (AC)

    • Minimum Detection Speed: 2 in/s

    • Mains Frequency: 50 - 60 Hz

    • Supply Voltage: 12 - 24 VAC; ±10% 12 - 24 VDC; ±30% / -10%

    • Maximum Power Consumption: < 2 W

    • Mounting Height: 11.5 - 23 ft.

    • Dimensions: 3-3/4 in. (W) x 4 in. (H) x 5 in. (L)

    • Materials: ABS & Polycarbonate

    • Temperature Range: -22 - 140 °F

    • Degree of Protection: IP65

    • Norm Conformance: EMC: 2004 / 108 / EC R&TTE: 1999 / 5 / EC
