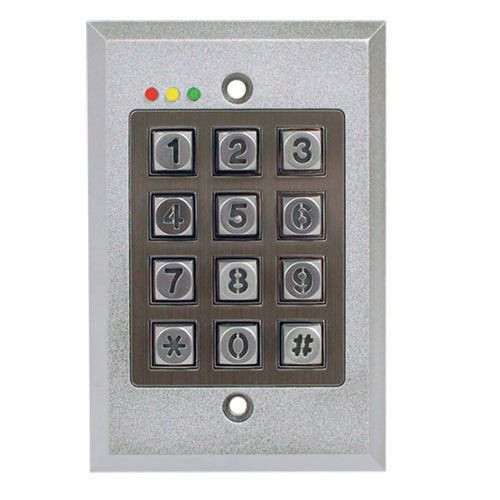

Transmitter Solutions DOLSKF1KB Single Gang, Flush Mount Exterior

The DOLKSF1KB is a secure and waterproof keypad with two relay outputs. It can work independently as a stand-alone keypad or it can work as an additional controller to create a high- security dual keypad system. It also has a 34-bit Wiegand data output from the entry of a pin/code.

FEATURES:

• Vandal Resistant

• Weatherproof

• IP 66 Rated

• Metal Back-lit Keys

• 1000 User Codes

• 4-8 Digit Pins

• Stand Alone Keypad

• Security Screws

• Flush Mount, Single Gang Box

SPECIFICATIONS:

• Dry Contact 50mA/24VDC

• Temperature Rating -40°F to 158°F

• Humidity 5-95% relative humidity, non-condensing

• Dimensions 4-5/8”(H) x 3-1/8”(W) x 2”(D) inches

• Weight 1 lb

• Housing Cast zinc alloy faceplate with

• ABS plastic inner box

• Operating Voltage 12-24VDC; auto adjusting

• Operating Current 50 (quiescent) to 1200mA (1 relay)
