Linear Multi-Code 3022 Safety Edge Gate & Garage Door Transmitter, 300MHz and 310MHz

SKU:
MCS302210
Write a Review
  • Usually Ships Following Business Day
  • Shipping Cost? For the cost of shipping your item please add the item into the shopping cart. Once the part is in the cart fill out address information in the cart under the Shipping area in the Summary section. Our system will then calculate the shipping fee based on your location and the weight of the product. This is all done before you are asked to provide payment information.

The Model 302210 Gate Safety Edge Transmitter is for adding obstacle sensing for motorized gates or barrier arms. Using a safety edge transmitter is more economical and discrete than the traditional coiled cord connection method. The transmitter mounts directly on the gate or barrier arm and wires to a standard exterior safety edge sensor (a Miller gate edge sensor is recommended). If an obstacle is encountered, the sensor will present a closed circuit across the connecting wires and the 302210 will transmit a message to the receiver signaling entrapment to the gate operator. The operator then stops or reverses the movement of the gate.

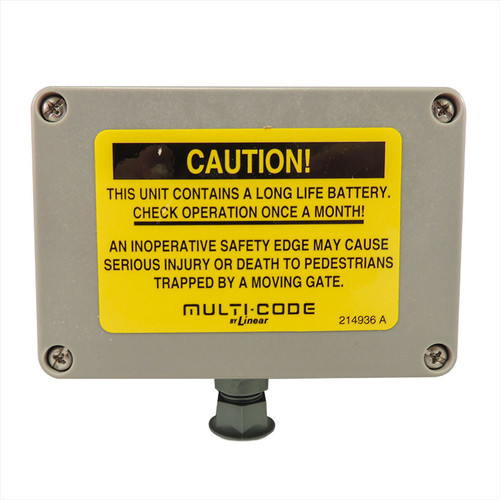

The 302210 transmitter is supplied in a weather-resistant, fiberglass box. Its circuit board is coated to prevent moisture damage. The enclosure mounts to the gate, door, or barrier arm through sealed interior mounting screws.

The Model 302210 is compatible with 300 MHz Multi-Code receivers and Model 109950 and 302850 receivers.

FEATURES:

  • Compatible with 300 MHz Multi-Code receivers

  • Safety edge transmitter

  • Activates receiver for stop or reverse entrapment

  • No cables or coiled wires

  • Mounting hardware (4 screws) supplied

  • Power: 9-volt battery

  • Codes: 1,024 (set by dip switches)

  • RF frequency: 300 MHz

  • Dimensions: 4.28" W x 2.875" H x 2.25" D
