Sommer YS10249-00001 2060 PRO+ 3/4HP Operator

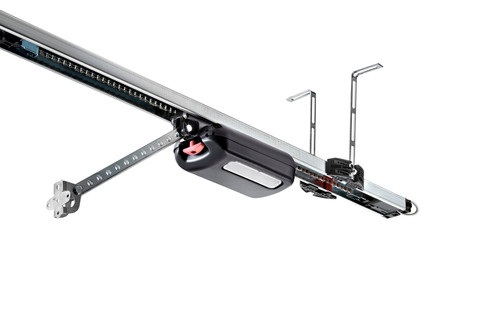

Sommer’s Pro+ 2060 Operator from Action Industries is a versatile garage door opener that works on any overhead door weighing up to 600 pounds. The Pro+ 2060 uses a direct drive design with a traveling motor that glides silently on a fixed chain. This operator has a 600 Newton (3/4HP) Motor that travels at speeds up to 9.4” per second. Direct Drive technology maximizes strength of the operator while minimizing moving parts and operator noise/vibration.

This operator uses a flexible separate control unit housing that can be installed virtually anywhere in the garage (front, rear, or ceiling) within 16’ of the rail. Pro+ operator models are ideal for installations with limited backroom or for retrofitting a building that was not wired for a garage door operator ahead of time.

Security and Safety:

• 922.5 MHz radio controls with 128-bit encryption

• Positive push-back by the operator in case of attempted forced entry

• Optional buzzer and lock for additional security

• Continuously adjusted force curves for maximum safety and obstacle detection

• Operators adjust speed based on door balance and weight for optimal speed and safety

• Monitored optical safety sensors included

• Optional monitored safety edge can be added

Features:

• 4-channel on board radio receiver for optional functions with 40-slot on board memory

• Engineered to 125,000 cycles in beta stage with third-party certification

• Mid-stop and automatic closing enabled

• Interlock capable

• 600 Newton Motor - Speeds up to 9.4” per second - maximum door weight 600 lbs

• Monitored safety edge or optical safety edge capable

• Alternate timing for internal and external lighting with radio channel 2

• 12VDC power supply at the motor carriage and 24VDC power supply at the control housing

• Homelink compatible

• Mount the control housing anywhere a power outlet is available

• The 24V connector wire between the control housing and rail is a low voltage wiring making for an easier installation (no electrician required)

Included in operator package:

• Motor Carriage

• Control housing with built-in wall controls

• 16’ connector wire

• 3-piece rail for doors up to 8' tall

• Nickel-plated chain

• One 4-button remote with visor clip

• Wired safety sensors

• Hardware for installation including door arm, ceiling bracket and straps

• Manuals and low voltage wiring kit
