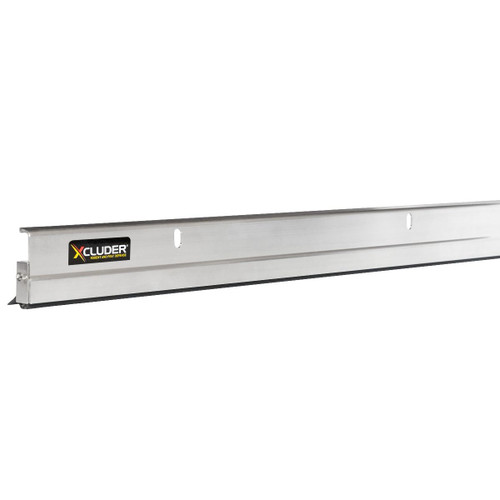

Xcluder X2 Door Bottom Seal Kit

The Xcluder® X2 Door Bottom Seal Kit is a complete sealing system for sectional and overhead door applications that require added protection against pests, light, drafts, and debris. The kit combines an Xcluder door seal, interior brush seal, and specialized aluminum X2 retainer to support a tight, durable seal at the bottom of the door.

Built for professional installation, the X2 system is ideal for commercial doors, service buildings, storage areas, and other high-use openings where floor conditions may be uneven. The brush seal conforms to textured surfaces while the door seal provides a reinforced barrier for long-term performance.

Specifications

• Complete bottom seal kit for sectional and overhead doors
• Includes specialized X2 Aluminum retainers
• Includes 4" wide Xcluder door seal
• Includes 3" Slim-Line brush seal
• Brush seal constructed from polypropylene for low water retention and cold-weather performance
• Includes mounting screws and installation instructions
• Designed for commercial and heavy-duty pest exclusion applications
• Brush seal faces the interior side of the door to help close small floor gaps
• Retainers mount directly to the bottom of the door with fasteners
• All retainers ship in 4' sections
• Can be trimmed in the field for smaller door widths

Kit Options

• 8' 2" kit length
• 12' 4" kit length
• 16' 4" kit length

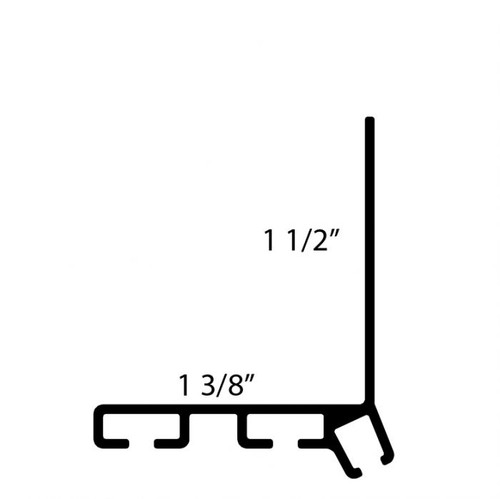

• 1-1/2" retainer width
• 1-3/4" retainer width
• 2" retainer width
