    Receiver, 1 Channel

    Manufacturer: - No Manufacturer -
    SKU: MCS109020
    Downloads / Attachments

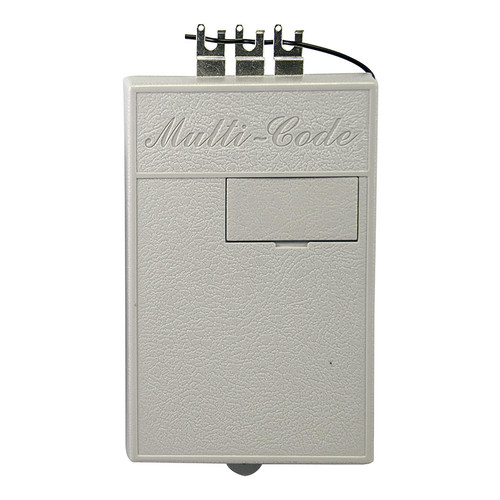

    Linear’s Multi-Code 1090 1-Channel Receiver from Action Industries is designed for keyless entry in residential garage door applications. The receiver mounts directly to the three terminals on the door operator for a straightforward installation, and an 11-inch wire antenna extends from the receiver.

    The Multi-Code Receiver is powered by a 24-volt connection to the operator, and can be powered with a separate optional 24-volt AC power transformer. Upgrade or retrofit an existing garage door opener with 300 MHz Multi-Code technology compatible with Multi-Code Transmitters. Programming is as simple as setting the 10 on/off switches to match compatible Multi-Code remote controls.


    • 24 VAC Power

    • One channel controls a single garage door opener

    • 1,024 possible codes

    • 10 on/off switch for easy transmitter programming

    • 300 MHz RF frequency

    • SKU: 1090

    • Compatible with 300 MHz Multi-Code transmitters with 10 on/off dip switches

    • One year manufacturer's warranty

    • Powered via the operator or with an optional 24-volt transformer


    • Height: 5-1/2 inches

    • Width: 3 inches

    • Depth: 1-1/2 inches
