Transmitter Solutions Nano 433 Mhz Reciever 4-Wire Unit

The Nano Receiver is designed to control automatic closing systems and anti-burglar systems, thanks to its very high security coding system (KeeLoq Hopping code) The receiver has 1 output relay with NO contacts, and can be connected to many types of operators (gate, garage door, rolling shutters, awnings, anti-burglar appliances, etc.) Programming can be done in self-learning mode with one programming button.

FEATURES:

• Available in 318 MHz (44 Memory), 433 MHz (85 Memory) or 868 MHz (85 Memory)

• Small size: 2 x 1-1/4 x 3/4 inches

• 5 year warranty

• 12-24 VAC/DC

• Consumption at 24V: 9mA at rest, 31mA relay excited

• Consumption at 12V: 9mA at rest, 26mA relay excited

• Range: 500 to 600 ft

• 1 channel

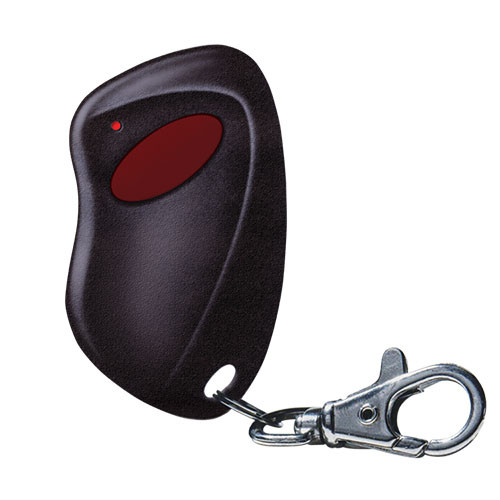

• Compatible with Stingray models 433TSPW1V & 433TSPW2V, and Monarch models 433TSPW1K & 433TSPW2K.

Programming options:

• Push to learn

• 2 button hand held programming remote

SPECIFICATIONS:

• Receiver type: Superheterodyne

• Local oscillator frequency: 6.6128 MHz

• Demodulation: Am/ASK

• Local oscillator: VCO / PLL

• Channel width: > 25 KHz

• Intermediate frequency: 10.7 MHz

• Input sensitivity: -115 dBm

• Local oscillator spurious emissions: < -57 dBm

• Input load: 50 OhmMax applicable power: 24 VA

• Relay number: 1

• Contacts: C-NO

• TX security code: 264

• Operating temperature: -4° to 158° F

• Housing protection: IP2X
