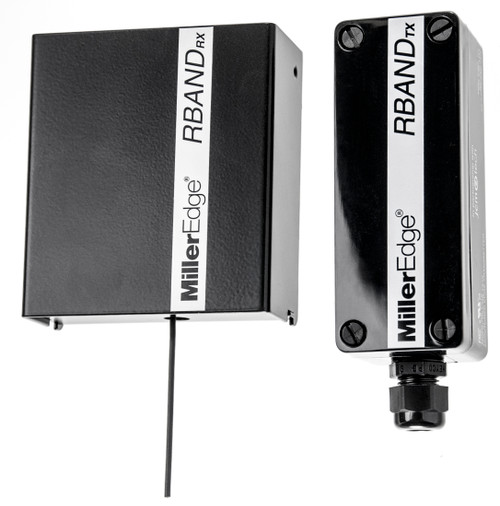

    Miller Edge RB-P-K10C RBAND Monitored Wireless Door Edge System

    SKU: RB-P-K10C
    Downloads / Attachments

    Miller Edge RBand for doors is a monitored wireless sensing edge transmitter/receiver system that provides wireless connection between a monitored sensing edge and a motorized garage door operator. Remove the wiring between your sensing edge and door to streamline any installation with this wireless solution from Action Industries. RBand is designed for commercial doors and has pulsed output for compatibility with most commercial door operators manufactured after 2010. The RBand receiver can pair with three transmitters to work with up to three separate garage door sensing edges or operators. Miller Edge manufactures their RBand products with durability to work in rugged industrial environments, and they are equipped with on-board diagnostics for easy set up and troubleshooting. RBand for doors offers pulsed and normally open outputs, making integration with existing systems easy. This system meets the UL325 requirements for monitored devices and has been certified as a UL 325 Recognized Component. It is designed for use with operators that comply with UL 325 using a Miller Edge 10K sensing edge. This wireless safety edge system is designed specifically for garage doors. For a wireless gate safety edge system Miller Edge manufactures the RBand Monitored Wireless Gate Edge System.

    Features:

    • Configured for Commercial motorized doors

    • Easy to set up and configure

    • Bi-directional link improves immunity to RF interface

    • Receiver is compatible with up to three wireless transmitters

    • On-board diagnostics for easy setup/troubleshooting

    • Monitored system ideal for commercial door operators manufactured after August 2010

    • Transmitter built to endure rugged environments

    • UL 325 Recognized Component

    • 2-year warranty

    • Powered by 2 AA batteries

    • Installs below operator for direct wiring

    Kit Contents:

    • RBand Edge Transmitter (RB-TX10)

    • RBand Door Edge Receiver (RB-P-RX10)

    • (2) 3.6V AA lithium batteries

    • (4) #6 pan head transmitter mounting screws

    PERFORMANCE:

    Response Time



    135 milliseconds

    Operating Temperature



    -40 Deg F to +140 Deg F (-40 Deg C to +60 Deg C)

    Frequency



    916 MHz

    Operating Range



    50 feet (15.25 m) nominal; 100 feet (30 m) maximum optimal conditions

    Agency Approvals



    UL 325 Recognized Component



    RB-P-RX10 RECEIVER



    RB-P-TX10 TRANSMITTER

    ELECTRICAL:

    Power Source



    12-24 volts AC/DC nominal



    (2) AA, 3.6 volts lithium, 2-year expectancy

    Input/Output



    Output: Pulsed, N.O.



    Input: 10K monitored sensing edge



    PHYSICAL:

    Dimensions



    3-5/8”W x 4-1/8”H x 1-5/8”D (93 x105 x 42 mm)



    1-13/16”W x 5-3/4”H x 1-3/4”D (46 x 146 x 44 mm)

    Weight



    5.25 oz.



    4.5 oz.

    Enclosure Material



    Steel



    Polycarbonate

    TX Low Battery Alert



    Alarm



    LED Indicators



    Outputs 1-2, check



    Transmit

    Antenna



    Attached wire



    Degree of Protection





    NEMA 4
