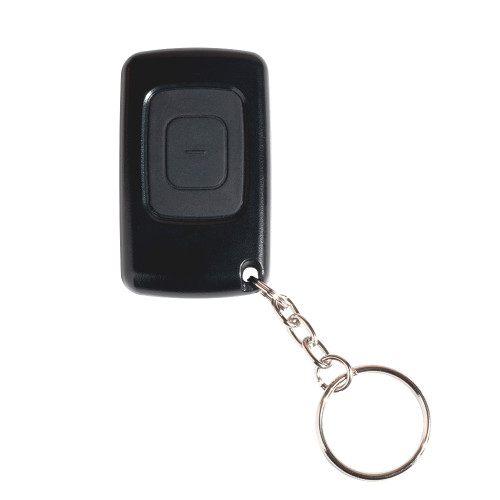

    EMX LR-650-TX One Button Transmitter

    Manufacturer: - No Manufacturer -
    SKU: LR-650-TX
    Downloads / Attachments

    Open your garage door from up to 450 feet away with the EMX LR-650 transmitter from Action Industries. The “LR” in EMX LR-650 refers to the device's long range capabilities as a gate and garage door opener remote when used with the EMX LR-650-RX receiver. This remote operates on a 315 MHz frequency with 68 billion possible codes to ensure unauthorized users can’t access the opener. Replace your current short range remote with the EMX LR-650 to ensure access to your facility from long distances. EMX’s LR-650 can be used for a wide variety of home automation products, including garage door openers, lights, gates, doors, and more.

    Features:

    • LR-650-TX long range transmitter

    • Use on garage door openers, gate openers, lights, doors, and more

    • Used with the LR-650-RX Receiver

    • 4 output modes: 1 sec, 4 sec momentary, toggle, and latch

    • Single button transmitter

    • 68 billion possible codes

    • 450-feet open-air operation range

    • Receiver current draw as low as 8mA making it suitable for solar applications

    • Key chain ring

    • Flashing LED indicator

    Specs:

    • Operating frequency: 315 MHz

    • Operating voltage: 11 - 24 VDC/AC

    • Operating distance: 450 feet open air, 1100 feet with optional dipole antenna

    • Operating temperature: -4°F to +162°F

    • Current Draw: 15 mA @ 12 VDC (standby) / 45 mA @ 12 VDC (activated)

    • Sensitivity: -87 dBm (typical)

    • Data Format: PWM

    • RF Codes: 68 billion

    • RF Channels: 1

    • Number of Stored Transmitter Codes: 15 FIFO

    • Receiver Outputs: Form “C” relay output (NO/COM/NC)

    • Output Modes (Programmable): 4 sec momentary (default), 1 sec momentary, toggle, or latch

    • Connectors: Quick connect screw terminals

    • Case Material: High-impact ABS plastic

    • Approvals: FCC
