Linear MegaCode MDRU Universal Plug-In Receiver for Gate and Garage Door Openers

SKU:
MDRU
Write a Review
  • Usually Ships 4 to 7 Business Days
UPC:
93683107870
  • Shipping Cost? For the cost of shipping your item please add the item into the shopping cart. Once the part is in the cart fill out address information in the cart under the Shipping area in the Summary section. Our system will then calculate the shipping fee based on your location and the weight of the product. This is all done before you are asked to provide payment information.

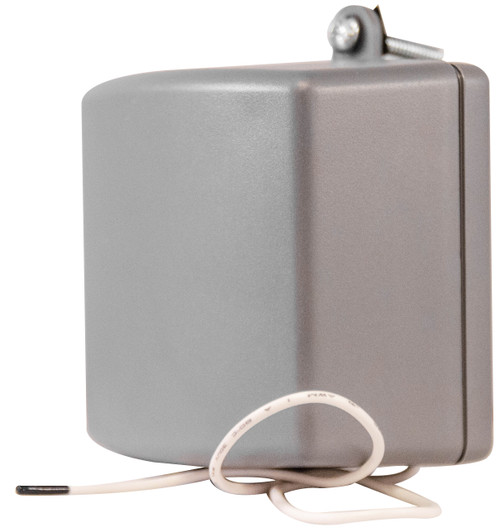

The Model MDR/U 1-Channel Plug-in Receiver is a versatile (universal) receiver that makes it very easy to equip nearly any garage door operator for use with Linear’s popular MegaCode format transmitters. MEgaCode uses a frequency of 318 MHz and features over one million radio codes to all but eliminate any possibility of code duplication. It offers simplified programming via the receiver’s learn mode.

Previously, when installers wanted to add MegaCode capability to a garage door operator that did not come already outfitted with a MegaCode receiver, they had to use Linear’s MDR receiver in combination with a powerful transformer. The MRD/U replaces the MDR and plugs directly into any electrical outlet. All that is required is running a single two-conductor wire from the MDR/U to the operator’s push-button input.

The MDR/U has one normally open contact output. It can be used to send a remote control signal from up to 10 MegaCode transmitters. A learn mode dramatically simplifies programming to just a button press.

Part Number: DNR00100

Features

  • Makes any garage door operator compatible with MegaCode transmitters

  • Simple plug-in design

  • Easy to install - one connection using two-conductor wire

  • Memory: storage for up to 10 MegaCode transmitters

  • Normally open contact activates for 0.5 seconds

  • Power: 110 VAC +/- 10%, 60 Hz

  • Codes: 1,000,000+ (MegaCode format)

  • RF frequency: 318 MHz

  • Dimensions: 2.52” W x 2.5” H x 1.61” D

Part Number: DNR00100

Product Manual
