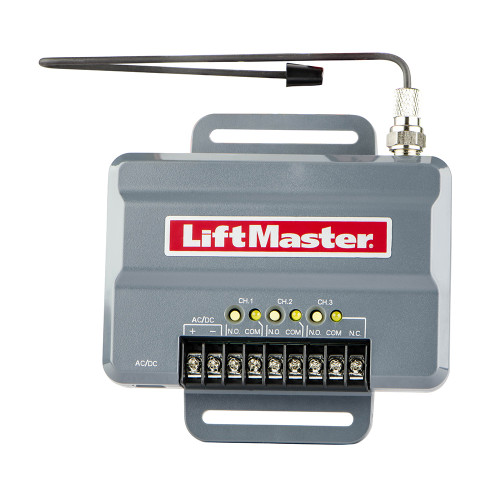

Liftmaster 850LM Universal Gate and Garage Door Opener Receiver

SKU: 850LM

Overview
Contact Us

Utilizing an innovative new narrow band multi-frequency radio, the LiftMaster 850LM Universal Gate and Garage Door Opener Receiver can serve gated communities and commercial buildings with a single transmitter. It features Security+ 2.0 technology that wipes away radio interference and callbacks due to poor range performance. It’s compatible with 811LM and all MAX remote controls. It comes with a one-year warranty and is compliant with FCC Part 15. Three channels provide expanded remote control capacity:

Channel 1 - 50 remotes

Channel 2 - 20 remotes

Channel 3 - 20 remotes

Each Channel can have 2 keyless entries programmed

It can be wired for an open close stop setup which is great with remote 813LM

Other product features include:

Compact design fits most gate and commercial door operators

Power: 12-24VDC or 12-24VAC

Relay Outputs: Output channels - 1 FORM C and 2 FORM A relays

Narrow-band on 310 MHz, 315 MHz, and 390 MHz Security+ 2.0™ Rolling Code and Encrypted DIP

Operational temperature from -35 to 65 degrees C; Storage temperature from -40 to 85 degrees

Please note: If your garage door or gate operator does not meet the power specifications you will need a transformer which is part number 85LM. Also, this receiver is known as the Model 850 LM and the 850 LMC
