    LED Truck Restraint Light Kits

    SKU: TRLK
    *
    Downloads / Attachments

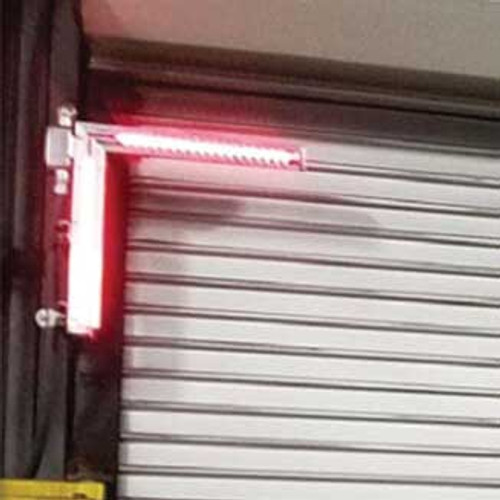

    Action's Truck Restraint Light Kit (TRLK) is a lighting system that activates when a tractor-trailer truck locks onto a warehouse dock. This life-safety product uses multi-colored LEDs to alert workers to the safety status of the truck restraint system.

    How It Works:

    Upon locking, the outside LEDs facing the truck turn flashing-red, indicating the truck cannot leave. Conversely, the LEDs inside the warehouse turn green, indicating the forklifts are free to enter the restrained truck. If the dock's door leaves fully-open status while the lock is engaged (dock door is creeping down), the LEDs will flash red, indicating danger of forklifts hitting the door. If the docking truck lacks a functional lock-bar and the truck restraint enters a lock-fail state, the LEDs will flash amber, indicating danger (manually chock wheels).

    LED Truck Restraint Lighting System Features:

    • Red and green LED lights signal safe action

    • LEDs flash amber to indicate lock-fail mode

    • Fully programmable LED Controller

    • Significant reduction in loading dock accidents

    • Works with most restraints

    • LEDs are visible from a distance by supervisors and surveillance cameras

    LED Truck Restraint Lighting System Kit Includes:

    • 1' x 1' or 1' x 3' LED aluminum frame and LEDs for both upper left and upper right of door facing forklift/warehouse workers

    • 1' x 3' LED aluminum frame and LED with 20’ cable for outside of door facing trucks

    • NEMA enclosure containing power supply and LED Controller

    • Instructions

    • A/C Signal Converter - optional

    • Door Limit Switch - optional

    Red, Green And Amber LEDs Communicate The Safety Status Of Warehouse Truck Restraint Systems:

    Door down, dock-lock disengaged (Dock not available)

    • Inside LEDs: Solid Red

    • Outside LEDs: Solid Red or Solid Green

    • (can be controlled with manual switch)

    Door up, dock-lock disengaged (Dock available)

    • Inside LEDs: Solid Red

    • Outside LEDs: Solid Green

    Door up, dock-lock engaged (Dock in use, truck is locked)

    • Inside LEDs: Solid Green

    • Outside LEDs: Flashing Red

    Door up, dock-lock fail state (Lock is NOT engaged properly - Danger)

    • Inside LEDs: Flashing Amber

    • Outside LEDs: Flashing Red

    Door not fully-up, dock-lock engaged (Door creep, danger of door strike)

    • Inside LEDs: Flashing Red

    • Outside LEDs: Flashing Red

    *
    *
    *
