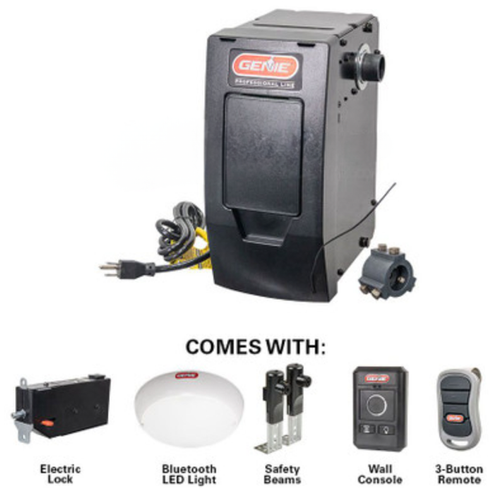

    GENIE 6070H RESIDENTIAL WALL MOUNT OPERATOR

    SKU: 39934R
    Downloads / Attachments

    The Genie Residential Wall Mount Garage Door Opener is now available at authorized Genie garage door opener dealers. The all-new wall mount designed Genie garage door opener model 6070 eliminates the traditional rail and powerhead design. This wall mount models attach directly to the garage door's spring tube!

    6070H Wall Mount Model Offers:

    • A Cleaner Look – Eliminating the rail and opener from the ceiling brings a clean and open look to your garage. This opens up more room for storage or other purposes.

    • Compact – The Compact design fits into tight side room spaces between the garage door track and the wall.

    • Headroom – ideal for garages with overhead beam obstructions that prevent installing a traditional garage door opener.

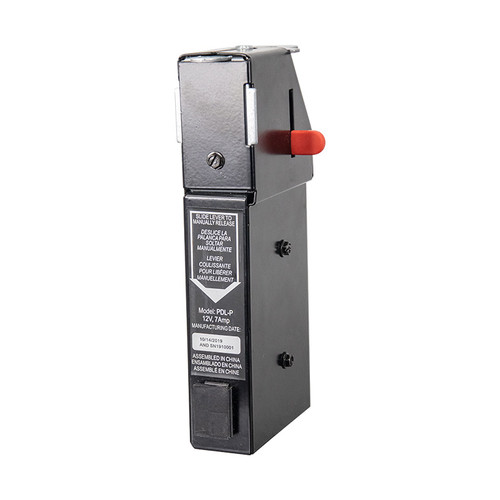

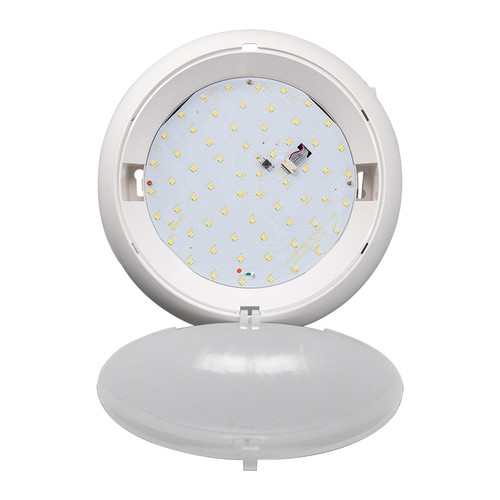

    Often referred to as a residential jackshaft garage door opener, the wall mount models also include the newest Genie garage door opener accessories. Featuring the wireless wall console 39902R, door lock 41149R and Bluetooth LED light fixture 41151R.

    Both the Aladdin Connect smart capability and battery backup options can be added later to the 6070 wall mount model, but do not come standard with it.

    DOOR COMPATIBILITY:

    • STANDARD LIFT – The 6070H can lift standard lift doors up to 14 feet tall, 18 feet wide, or 180 square feet as long as they have compatible drum models 400-8, 400-12, or 525-18

    • HI-LIFT – Capable of opening hi-lift doors up to 14 feet tall, 18 feet wide, or 180 square feet as long as they use drum models 400-54 or 5250-54

    • VERTICAL LIFT – Compatible with vertical lift doors up to 14 feet tall, 18 feet wide, or 180 square feet using cable drum models 850-11 or 1100-18

    • MAX DOOR SIZE – 180 square feet

    • MAX DOOR WEIGHT – 850 pounds

    • Torsion bar 1-inch in diameter (hollow or solid) made from 14 or 16 gauge tubular steel

    • NOT FOR USE WITH EXTREME LOW-HEADROOM, OR REVERSE WOUND DRUMS

    FEATURES:

    • 24V Motor - provides quiet yet powerful performance

    • Opening speeds up to 7.5" per second

    • Intellicode Security to stop thieves

    • Homelink and Car2U compatible

    • 15-Year Limited Motor Warranty

    • Slack Cable detection to insure safe door travel

    • GenieSense monitoring and diagnostic technology

    • Soft Start & Stop Control

    PACKAGE INCLUDES:

    *
    *
    *
