10MS41 Stainless Steel Touchless Actuator With Adjustable Range And Relay Hold Time

BEA’s MAGIC SWITCH® Family provides a highly accessible and germ-free door activation without physical contact. Reduce touchpoints in fast-paced environments that depend on sanitation like healthcare, retail, industrial and commercial settings.

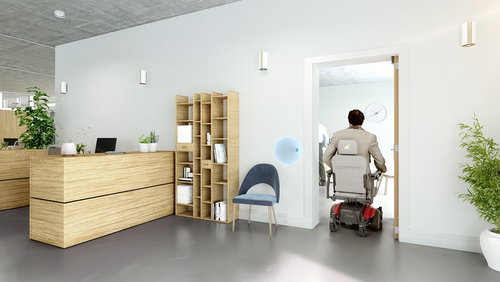

Using microwave technology, BEA’s MS41 produces a detection field with a reliable and consistent transmission in interior and exterior applications. Capable of detecting a moving hand, cart or wheelchair. Plus, an adjustable hold time offers flexibility to meet ANSI standards.

The MS41 features rounded corners and a customizable illuminated ring with audible signaling. The durable design suits sterile, wash-down applications such as surgical, wash-down, clean room and pharmaceutical environments.

FEATURES:

• Durable Faceplate – Stainless steel faceplate increases durability and protection from daily cleaning

• Ideal For Harsh Environments – IP55 rated enclosure capable of use in industrial and extreme washdown environments

• High-Visibility – Animated or static Illuminated ring allows for high-visibility in low light areas

• Adjustable Detection Zone – Adjustable sensing zone from 4 to 24 inches (timed or toggle)

• Activation Alerts – Adjustable audible alert setting, including silent-mode required for hospitals and other noise-sensitive environments

• Adjustable Hold Time – Configurable output hold time of 1/2 to 30 seconds allowing unique, user-defined device placement

• Applications – Healthcare environments, clean rooms, sterile facilities, and washdown resistant

MICROWAVE DOPPLER RADAR:

Radar technology, also called microwave technology, is based on the Doppler Effect. The radar sensor continuously emits microwaves with a certain frequency in a defined area. These microwaves are reflected back to the sensor by all of the objects present in its environment.

Common Objects:

• Hand

• Wheelchair

• Cart

Once movement occurs in the detection field, the microwaves come back to the sensor with a different frequency, resulting in a detection.

COMMON APPLICATIONS:

	REQUEST-TO-EXIT Program ‘2-relay sequencer + door position’ to increase security. Related Products: MS41 FLY KIT BR3-X (function 28) UL LISTED MAGLOCK or ELECTRIC STRIKE			EASY RETROFIT Retrofit transmitter eliminates the need for additional power wires, making retrofitting easy. Related Products: MS41 TD900TR retrofit transmitter
	INTERLOCK SEQUENCING Adding logic provides sequencing to allow access through one door at a time. Related Products: MS41 FLY KIT BR3-X (function 50)			WASH-DOWN RESISTANT IP rating helps keep the critical electrical components safe from environmental damage over time. Related Products: MS41

TECHNICAL SPECIFICATIONS:

• Technology – Microwave Doppler Radar

• Radiated Frequency – 24.125 GHz

• Radiated Power Density – < 5 mW/cm squared

• Detection Mode – Motion (bidirectional)

• Detection Range – 4-24 inches (adjustable)

• Output – Relay with switch-over contact (voltage-free)

• Max. Contact Voltage – 60 VDC / 125 VAC

• Max. Contact Current – 1A (resistive)

• Max. Switching Power – 30 W (DC) / 60 VA (AC)

• Output Hold Time – 0.5 - 30 seconds

• Supply Frequency – 50 – 60 Hz

• Supply Voltage – 12-24 VAC +/- 10%, 12-24 VDC +30% / -10%

• Power Consumption – < 1.5 W

• Weight – 0.34 lbs

• Material – Stainless steel

• Temperature Range – -4 – 131º F

• IP Rating* – IP55, Apply silicone to achieve IP65

• Certifications –

• EMC – 2004 / 108 / EC

• FCC – G9B-210161

• IC – 4680A-210161

• Dimensions –

• Single-Gang – 4-½ inches (H) X 2-¾ inches (W) X 9/50 inch (T)

• Double-Gang – 4-½ inches (H) X 4-½ inches (W) x 9/50 inch (T)

• Round – 6 inches (D) X 9/50 inch (T)

• Mounting Compatibility –

• Single-Gang – 10BOX24SGSM, 10ABOXSGSMS

• Double-Gang – 10BOXDGSM, 10BOX475SQSM (with adapter bracket)

• Round – 10BOX6RNDSM (with adapter bracket)

*See users guide
